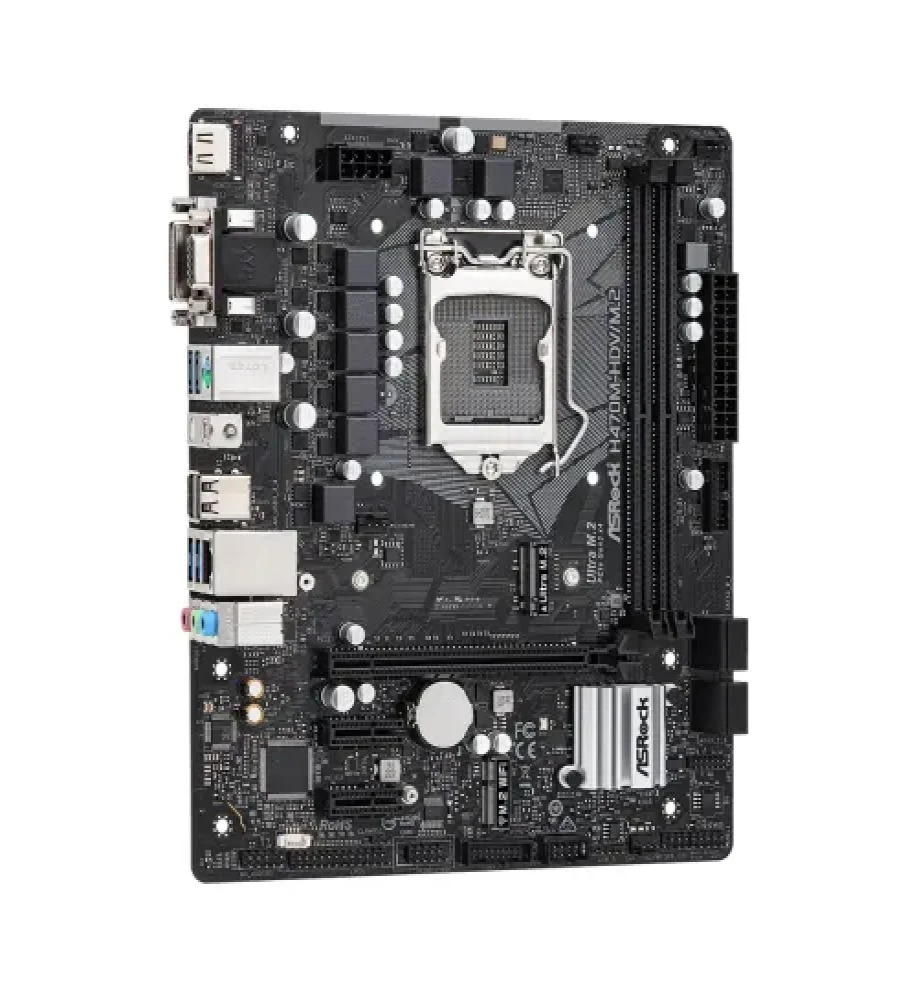

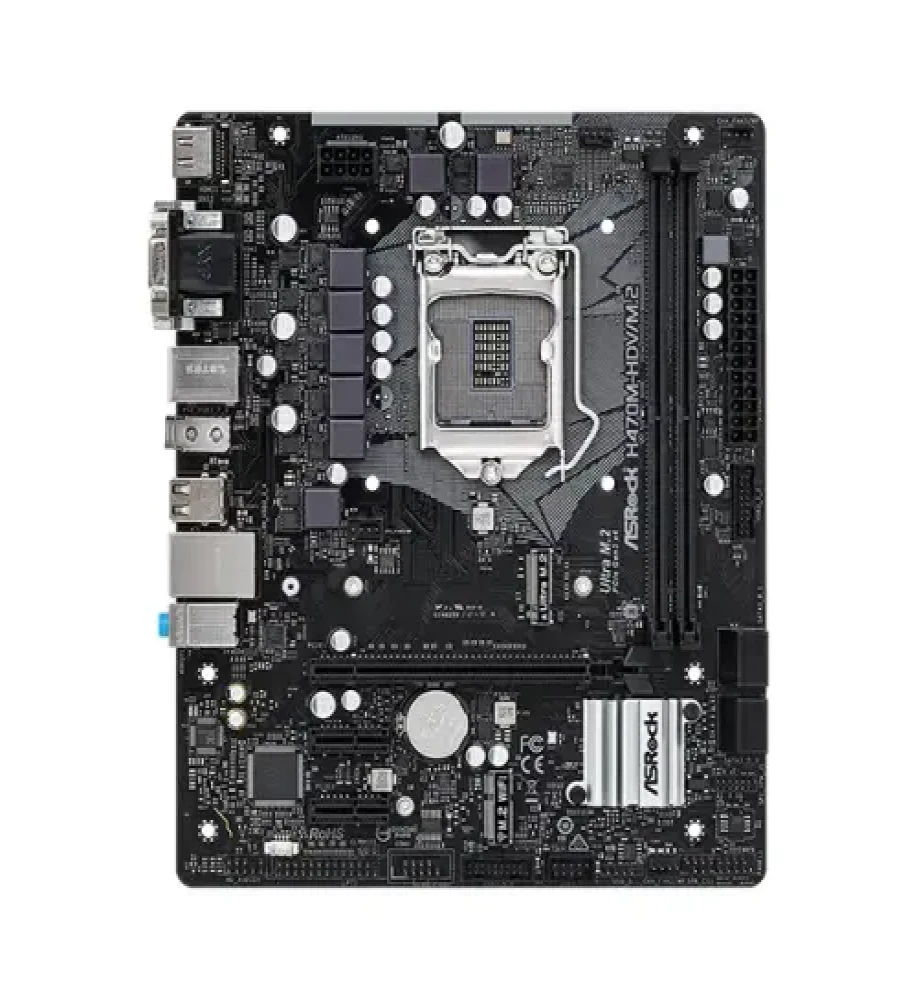

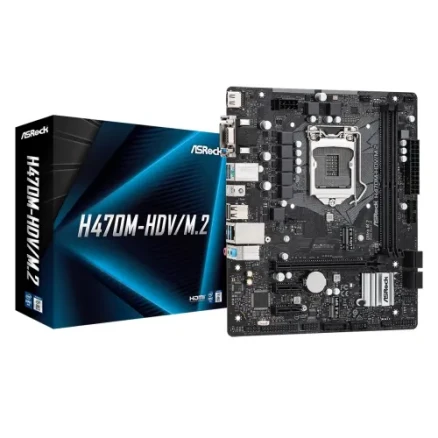

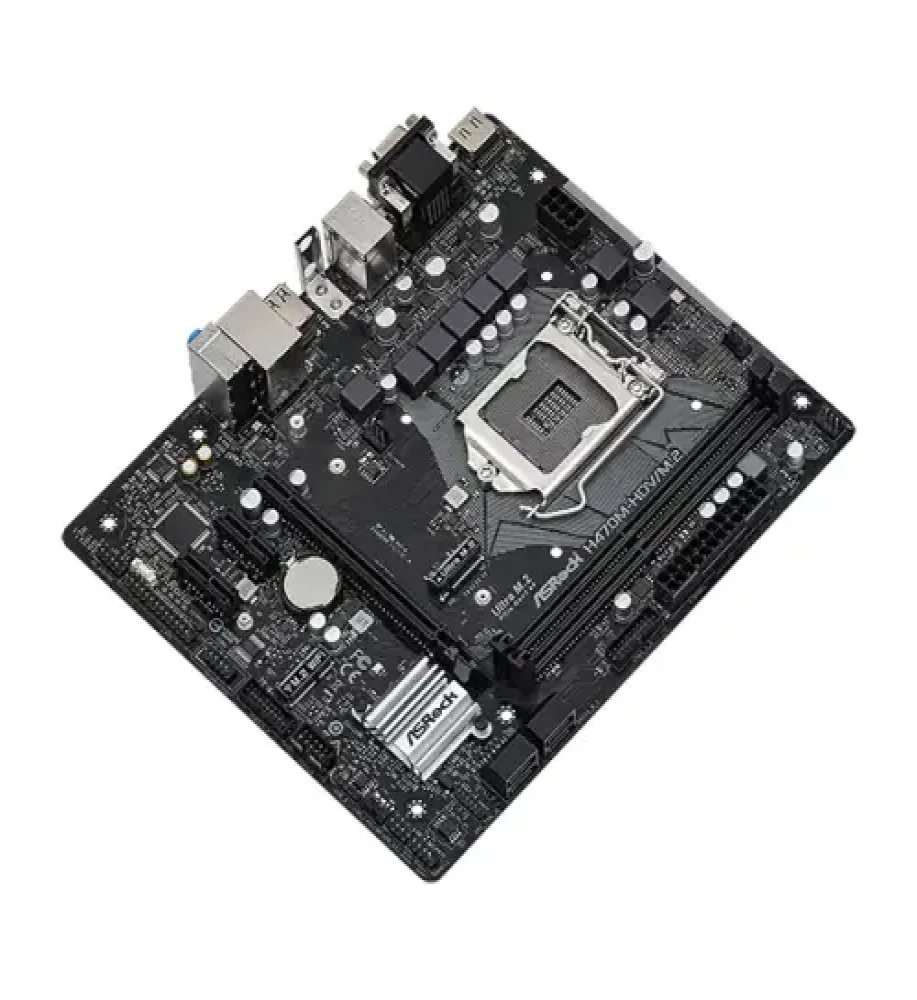

The ASRock H470M-HDV/M.2 Micro ATX Motherboard supports 10th Gen Intel Core Processors (Socket 1200). It has a 7 Power Phase Design, it offers enhanced performance with the lowest temperature for advanced gamers. Complete with all three types of most used connectors. It features Dual Channel DDR4 Memory Technology and supports DDR4 2933/ 2800/ 2666 / 2400 / 2133 non-ECC, un-buffered memory. It has 2 x DDR4 DIMM Slots. It comes with a 7.1 CH HD Audio (Realtek ALC897 Audio Codec)Supported CPU Supports 10th Gen Intel Core Processors (Socket 1200)
Digi Power design
7 Power Phase design
Supports Intel Turbo Boost Max 3.0 TechnologyChipset Intel H470 BIOS 128Mb AMI UEFI Legal BIOS with multilingual GUI support
ACPI 6.0 Compliant wake up events
SMBIOS 2.7 Support
CPU Core/Cache, GT, DRAM, VPPM, PCH 1.05V, VCCST, VCCSA Voltage Multi-adjustmentForm Factor Micro ATX Form Factor: 8.9-in x 7.4-in, 22.6 cm x 18.8 cm
Solid Capacitor designAudio 7.1 CH HD Audio (Realtek ALC897 Audio Codec)
Supports Surge ProtectionExpansion Slots PCI 1 x PCI Express 3.0 x16 Slot*
2 x PCI Express 3.0 x1 Slots
1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi moduleMemory Type DDR4 Slots 2 x DIMM Slots Supported Memory Dual Channel DDR4 Memory Technology
Supports DDR4 2933 / 2800 / 2666 / 2400 / 2133 non-ECC, un-buffered memory
Supports ECC UDIMM memory modules (operate in non-ECC mode)
Supports Intel Extreme Memory Profile (XMP) 2.0
15μ Gold Contact in DIMM SlotsMaximum Memory 64GB Graphics Graphics - Hardware Accelerated Codecs: AVC/H.264, HEVC/H.265 8bit, HEVC/H.265 10bit, VP8, VP9 8bit, VP9 10bit, MPEG 2, MJPEG, VC-1
- Graphics, Media & Compute: Microsoft DirectX 12, OpenGL 4.5, Intel Built In Visuals, Intel Quick Sync Video, Hybrid / Switchable Graphics, OpenCL 2.1
- Display & Content Security: Rec. 2020 (Wide Color Gamut), Microsoft PlayReady 3.0, Intel SGX Content Protection, UHD Blu-ray Disc
- Three graphics output options: D-Sub, DVI-D and HDMI
- Supports Triple Monitor
- Supports HDMI 1.4 with max. resolution up to 4K x 2K (4096x2160) @ 30Hz
- Supports DVI-D with max. resolution up to 1920x1200 @ 60Hz
- Supports D-Sub with max. resolution up to 1920x1200 @ 60Hz
- Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI 1.4 Port (Compliant HDMI monitor is required)
- Supports HDCP 2.3 with DVI-D and HDMI 1.4 Ports

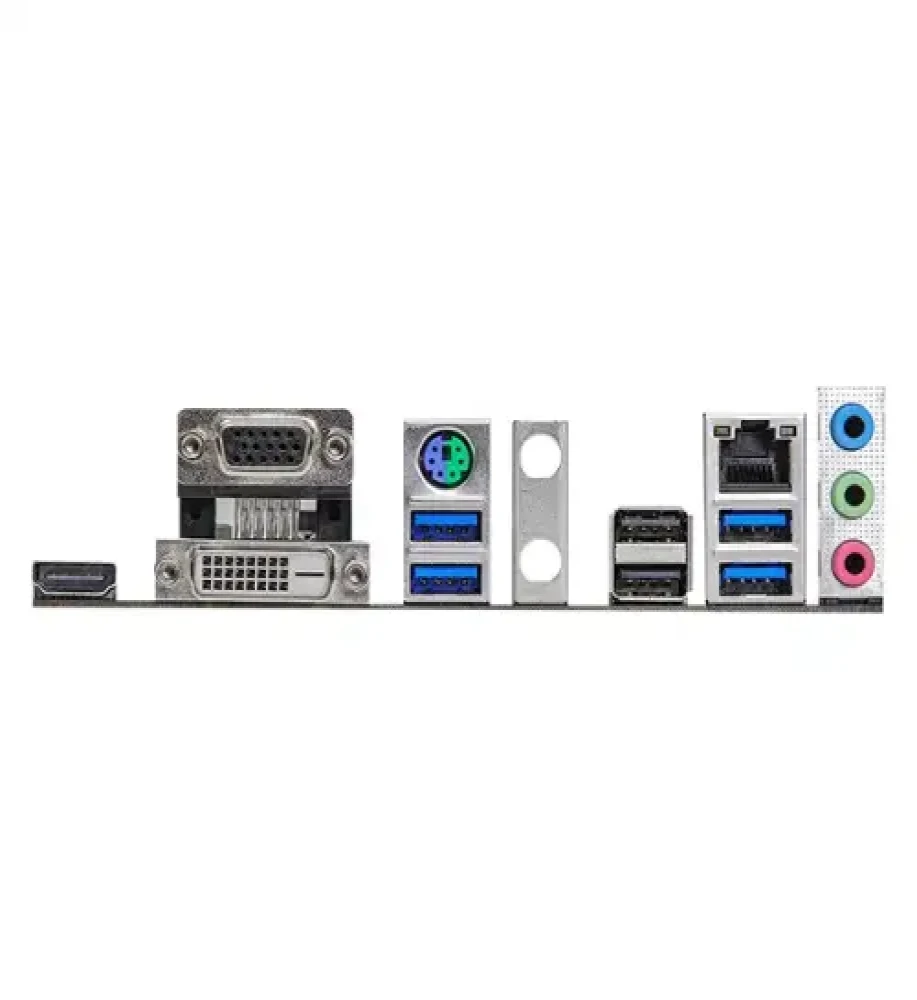

- Supports 4K Ultra HD (UHD) playback with HDMI 1.4 PortConnector & Ports HDMI 1 x HDMI Port D-Sub (s) 1 x D-Sub port DVI-D (s) 1 x DVI-D port LAN Port (s) Gigabit LAN 10/100/1000 Mb/s
Giga PHY Intel I219V
Supports Wake-On-LAN
Supports Lightning/ESD Protection
Supports Energy Efficient Ethernet 802.3az
Supports PXESupported Storage 4 x SATA3 6.0 Gb/s Connectors, support RAID (RAID 0, RAID 1, RAID 5, RAID 10, Intel Rapid Storage Technology 17), NCQ, AHCI and Hot Plug
1 x Ultra M.2 Socket (M2_1), supports M Key type 2260/2280 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x4 (32 Gb/s)Audio HD Audio Jacks: Line in / Front Speaker / Microphone Internal I/O Ports 1 x Print Port Header
1 x COM Port Header
1 x Chassis Intrusion and Speaker Header
1 x CPU Fan Connector (4-pin)
1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)
2 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)
1 x 24 pin ATX Power Connector
1 x 8 pin 12V Power Connector
1 x Front Panel Audio Connector
2 x USB 2.0 Headers (Support 3 USB 2.0 ports) (Supports ESD Protection)
- 2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports) (Supports ESD Protection)TPM (Trusted Platform Module ) 1 x SPI TPM Header Others Special Features ASRock Super Alloy
- Premium 50A Power Choke
- Sapphire Black PCB
- High Density Glass Fabric PCB
ASRock Ultra M.2 (PCIe Gen3 x4 & SATA3)
ASRock Full Spike Protection (for all USB, Audio, LAN Ports)
ASRock Live Update & APP ShopWarranty Information Manufacturing Warranty 3 years Description
